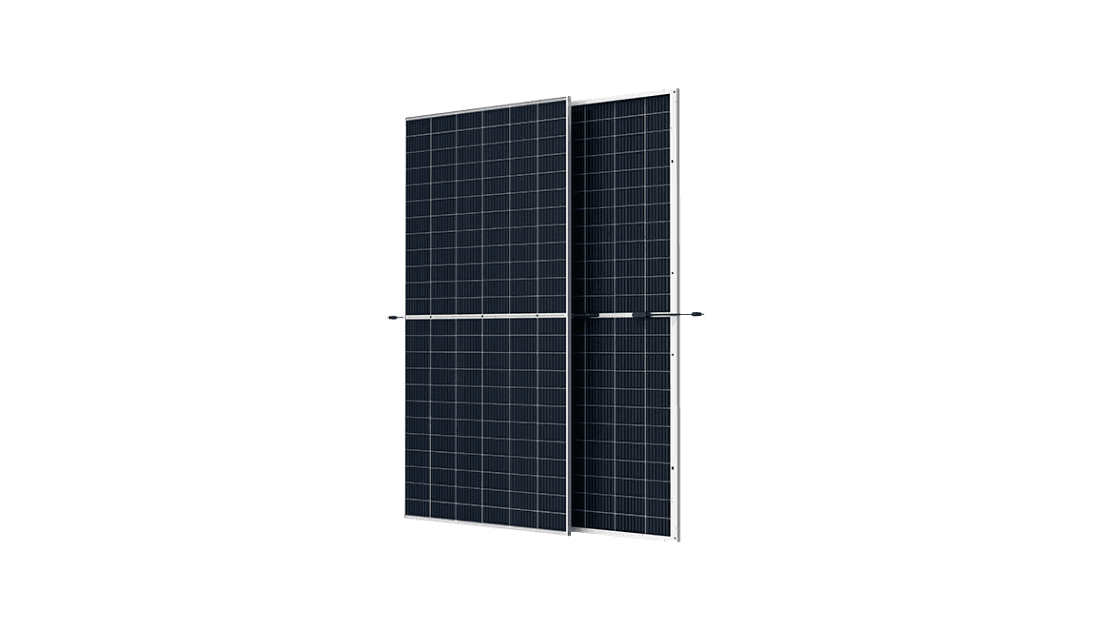

590W Jinko Solar N-type Bifacial | Tiger Neo Series 72HL4-BDV

Jinko Solar

590W Jinko Solar N-type Bifacial | Tiger Neo Series 72HL4-BDV

Solar Panel

The Jinko Solar Tiger Neo 72HL4-BDV is a high-performance 590W N-Type Bifacial Solar Panel designed to deliver enhanced energy generation and long-term reliability. Its bifacial technology captures sunlight from both the front and rear sides of the panel, while advanced N-Type cell technology provides excellent performance, durability, and improved energy yield.

Request product details

Overview

590w Jinko Solar N-type Bifacial| Tiger Neo Series 72HL4-BDV KEY FEATURES N-Type Technology with TOPCon: This module features N-Type cells with Tunnel Oxide Passivating Contact (TOPCon) technology, minimizing LID/LeTID degradation and improving performance under low-light conditions. Bifacial Dual Glass Design: Thanks to its bifacial structure and dual-glass build, the module captures sunlight on both sides, increasing total energy generation and enhancing overall system performance. High Power and Efficiency: With a rated output of 590W and a module efficiency of 22.80%, it is ideal for high-performance applications where maximum energy yield is essential. Extreme Weather Resistance: Engineered to withstand up to 5400 Pa front load and 2400 Pa rear load, ensuring durability and stability even in harsh environments. Low Power Degradation: Degradation is just 1% in the first year and only 0.4% annually thereafter, ensuring consistent performance and extended service life for up to 30 years.

Key features

  • Nominal Power (Pmax): 590W
  • Optimum Operating Voltage (Vmp): 44.17V
  • Optimum Operating Current (Imp): 13.36A
  • Open Circuit Voltage (Voc): 52.90V
  • Short Circuit Current (Isc): 14.07A
  • Module Efficiency: 23.03%
  • Power Tolerance: 0 ~ +3%
  • Datos Mecánicos:
  • Cell Type: N-Type Monocrystalline TOPCon
  • Cell Configuration: 144 (72 x 2)
  • Dimensions: 2278 × 1134 × 30 mm
  • Weight: 31.0 kg
  • Front and Rear Glass: 2.0 mm tempered glass with anti-reflective coating
  • Frame: Anodized aluminum alloy
  • Junction Box: IP68, 3 bypass diodes
  • Connectors: JK03M / JK03M2 / MC4 / MC4-EVO2
  • Cables: 4.0 mm², lengths: (+) 400 mm, (–) 200 mm (customizable)
  • Operating Temperature Range: –40°C to +70°C
  • Temperature Coefficient (Pmax): –0.29%/°C
